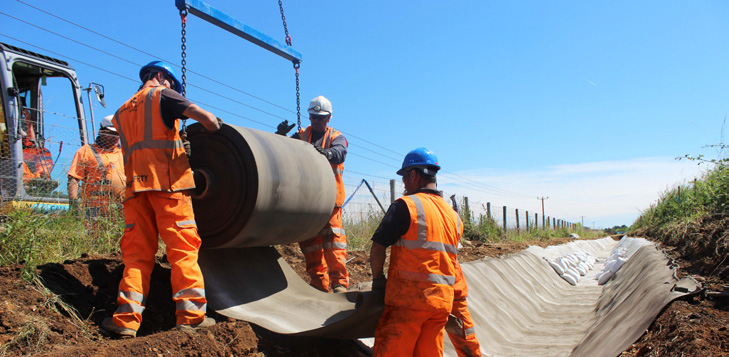

Created specifically for erosion control, containment and shelter applications, Concrete canvas products are part of a revolutionary class of new, innovative materials called Geosynthetic Cementitious Composite Mats (GCCMs). Concrete canvas is a flexible, concrete filled geosynthetic which provides a thin and durable concrete layer when hydrated. Typically, installation is 10-times faster than conventional concrete solutions.
Concrete canvas consists of a 3-dimensional fibre matrix containing a specially formulated dry cementitious mix. A PVC backing ensures the concrete canvas is completely waterproof. Concrete canvas can be hydrated by spraying or full immersion in fresh or salt water. Once set, the fibres reinforce the cementitious mix, preventing crack propagation and providing a safe plastic failure mode. As a result, concrete canvas provides a thin, durable, water proof and lower carbon alternative to traditional concrete. Concrete canvas is available in 3 thicknesses: (5 mm) CCT1™, (7 mm) CCT2™ and (11 mm) CCT3™.
For all brochures and documents related to Concrete Canvas, please click here.
Application Areas;
- Bund Lining
- Channel Lining
- Slope Protection
- Petrochemical Industry
- Concrete Remediation

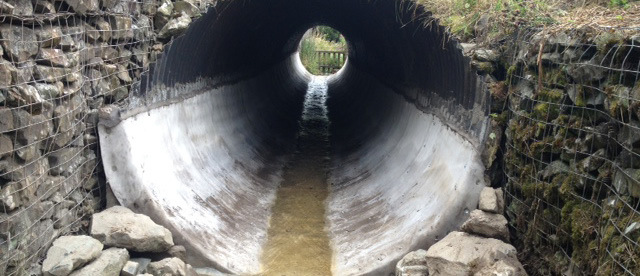

- Culvert
- Weed Suppression
- Outfalls / Spillways
- Protection
- Mining Industry
- Vent Construction
- Walls Construction
- Tank Floor Lining
